Render HUGE Lists In React - React Window Tutorial

July 17, 2019

This is a tutorial on react-window, at the end of the article there is a link to a Github repo with code examples.

Rendering lists in React is simple, I would say trivial. You just map through an array of items and output elements.

Like here:

<ul>
  {items.map(item => (
    <li key={item.id}>{item.text}</li>
  ))}
</ul>

Oh, just don’t forget to specify the key. Read more about it in article about lists and keys in React.

But what if you need to render a couple of thousand items at once?

The Problem

I’m going to use create-react-app bootstrapped application in all my examples in this tutorial.

First, let’s try to render 3000000 items as usual and see what happens.

export default () => (
  <ul>
    {[...Array(3000000).keys()].map(item => (
      <li key={item}>Row {item}</li>
    ))}
  </ul>
)

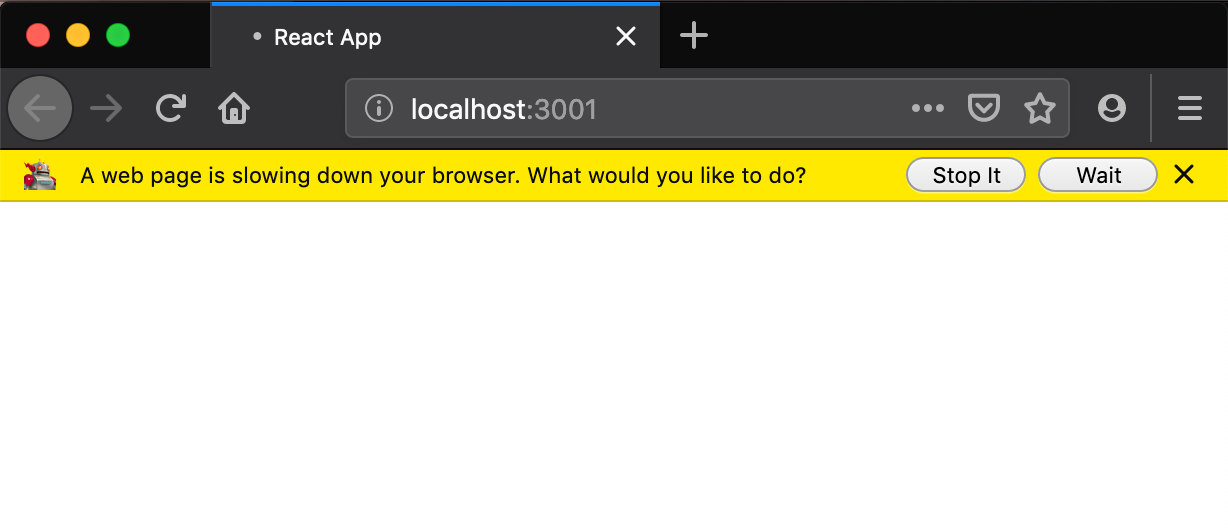

The browser just hangs and prompts us to stop the script.

How To Solve It?

We need to optimize rendering. The technique to do is with lists is called windowing.

You show only the content that is currently inside of the view boundaries of the user.

In react here is a package react-window

React Window Simple Example

Here is a simple tutorial on how to use react-window.

We’ll use the code from the docs as an example.

  • Create a new application using create-react-app.
create-react-app react-window-example
  • Install dependencies. We’ll use react-window and also react-virtualized-auto-sizer in our example.
yarn add react-window react-virtualized-auto-sizer
  • Go to App.js, and import needed packages.
import React from "react"
import { FixedSizeList as List } from "react-window"
import AutoSizer from "react-virtualized-auto-sizer"
  • Add these styles to index.css:

    html {
      font-family: sans-serif;
      font-size: 12px;
    }

    body {
      margin: 0;
    }

    html,
    body,
    #root {
      height: 100%;
      overflow-x: hidden;
     }

    .List {
      border: 1px solid #d9dddd;
    }

    .ListItemEven,
    .ListItemOdd {
      display: flex;
      align-items: center;
      justify-content: center;
    }

    .ListItemEven {
      background-color: #f8f8f0;
    }

    Make sure you have it imported in App.js:

    import 'index.css'
  • Define the list component.

    export default () => (
    <AutoSizer>
      {({ height, width }) => (
        <List
          className="List"
          height={height}
          itemCount={1000}
          itemSize={35}
          width={width}
        >
          {Row}
        </List>
      )}
    </AutoSizer>
    )

    Here we pass height and width from AutoSizer to our List component. We do it so List takes all the horizontal and vertical space available.

    We pass itemSize - in our case, it’s the height of our rows.

  • Define the Row component:

    const Row = ({ index, style }) => (
    <div className={index % 2 ? "ListItemOdd" : "ListItemEven"} style={style}>
      Row {index}
    </div>
    )

    Here we just display current index. Also, we apply even or odd class to the element.

  • Run your application:

    yarn start

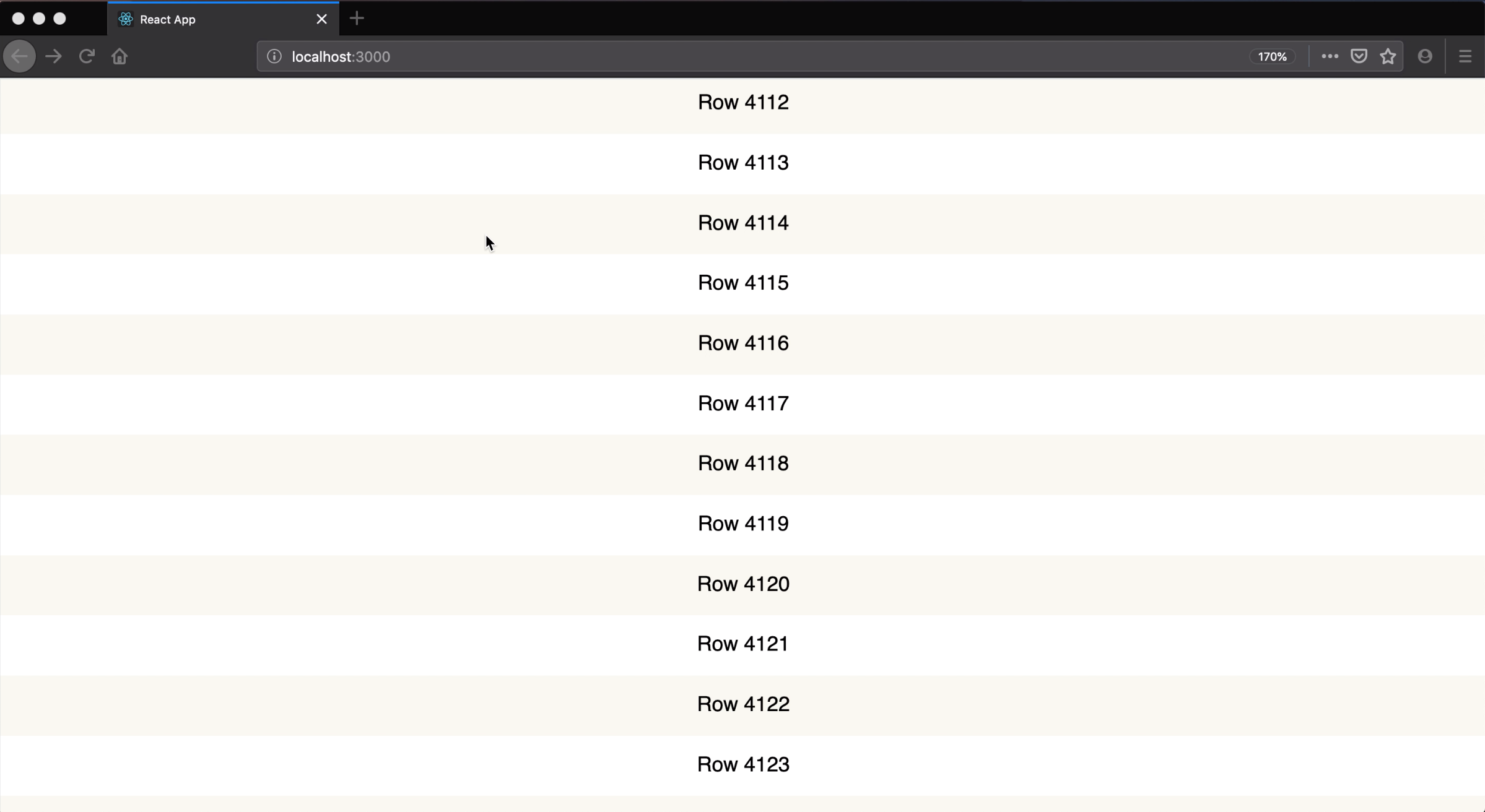

    You should see the list with 1000 items in it.

It was an example with generated items. Not it’s time to learn how to add data to it.

React Window Example With Data

In this example, we will display a list of cities with their population. We will use the code from the previous example as our base.

  • Install react-window-infinite-loader

    yarn add react-window-infinite-loader
  • Import InfiniteLoader

    import InfiniteLoader from "react-window-infinite-loader"
  • Wrap your List into InfinineLoader

    export default () => (
    <AutoSizer>
      {({ height, width }) => (
        <InfiniteLoader
          isItemLoaded={isItemLoaded}
          loadMoreItems={loadMoreItems}
          itemCount={1000}
        >
          {({ onItemsRendered, ref }) => (
            <List
              className="List"
              height={height}
              itemCount={1000}
              itemSize={35}
              width={width}
              ref={ref}
              onItemsRendered={onItemsRendered}
            >
              {Row}
            </List>
          )}
        </InfiniteLoader>
      )}
    </AutoSizer>
    )

    Here I’ve hardcoded the itemCount, you could get this number from the API instead.

    Pass onItemsRendered and ref to List as props. We’ll also have to define isItemLoaded and loadMoreItems functions.

  • Define items and requestCache objects. You don’t have to define them inside of the component, because we don’t need them to be observable.

    let items = {}
    let requestCache = {}
  • Define the isItemLoaded function.

    const isItemLoaded = ({ index }) => !!items[index]

    As you can tell by the name, InfiniteLoader uses this function to determine if a particular item was loaded. Here we just check that an item with specified index exists in our items object.

    We use double negation !! to transform object stored in items to boolean.

  • Define the getUrl function

    const getUrl = (rows, start) =>
    `https://public.opendatasoft.com/api/records/1.0/search/?dataset=worldcitiespop&sort=population&fields=population,accentcity&rows=${rows}&start=${start}&facet=country`

    We’ll use this function inside our loadMoreItems implementation.

    We get rows and start as arguments and pass them as queryParams in our URL.

  • Define the loadMoreItems

    const loadMoreItems = (visibleStartIndex, visibleStopIndex) => {
    const length = visibleStopIndex - visibleStartIndex

    return fetch(getUrl(length, visibleStartIndex))
      .then(response => response.json())
      .then(data => {
        data.records.forEach((city, index) => {
          items[index + visibleStartIndex] = city.fields
        })
      })
      .catch(error => console.error("Error:", error))
    }

    We need to know the size of the portion of items we want to get. So we calculate the length first.

    Then we generate the URL using getUrl function and fetch the data.

    After we get the response we iterate through records and save them in our items object.

    This function is being called every time you scroll your list, so we’ll have to implement some sort of caching.

  • Add caching to loadMoreItems:

    const loadMoreItems = (visibleStartIndex, visibleStopIndex) => {
    const key = [visibleStartIndex, visibleStopIndex].join(":") // 0:10
    if (requestCache[key]) {
      return
    }

    const length = visibleStopIndex - visibleStartIndex
    const visibleRange = [...Array(length).keys()].map(
      x => x + visibleStartIndex
    )
    const itemsRetrieved = visibleRange.every(index => !!items[index])

    if (itemsRetrieved) {
      requestCache[key] = key
      return
    }

    // Fetching ...
    }

    Here we first cache the specific range by converting it to string and storing it in requestCache object.

    So for instance, if we try to fetch items from 0 to 10 - we convert this range to string "0:10" and store it. Then if we try to fetch the same range again - we’ll abort the operation.

    Then we need to check if any items from the range we want to fetch weren’t yet fetched before.

    So we generate the whole range of indices. For range 2-8 it will be 2,3,4,5,6,7,8.

    Next, we map through those numbers and check if all of the indices were already fetched.

    If that is true - we cache the range and abort the operation.

  • The last step - update the Row component.

    const Row = ({ index, style }) => {
    const item = items[index]
    return (
      <div className={index % 2 ? "ListItemOdd" : "ListItemEven"} style={style}>
        {item ? `${item.accentcity}: ${item.population}` : "Loading..."}
      </div>
    )
    }

    If we have the item for the index - we display it’s accentcity field, that holds name and population. Otherwise, we show Loading... label.

  • Run the app.

    yarn start

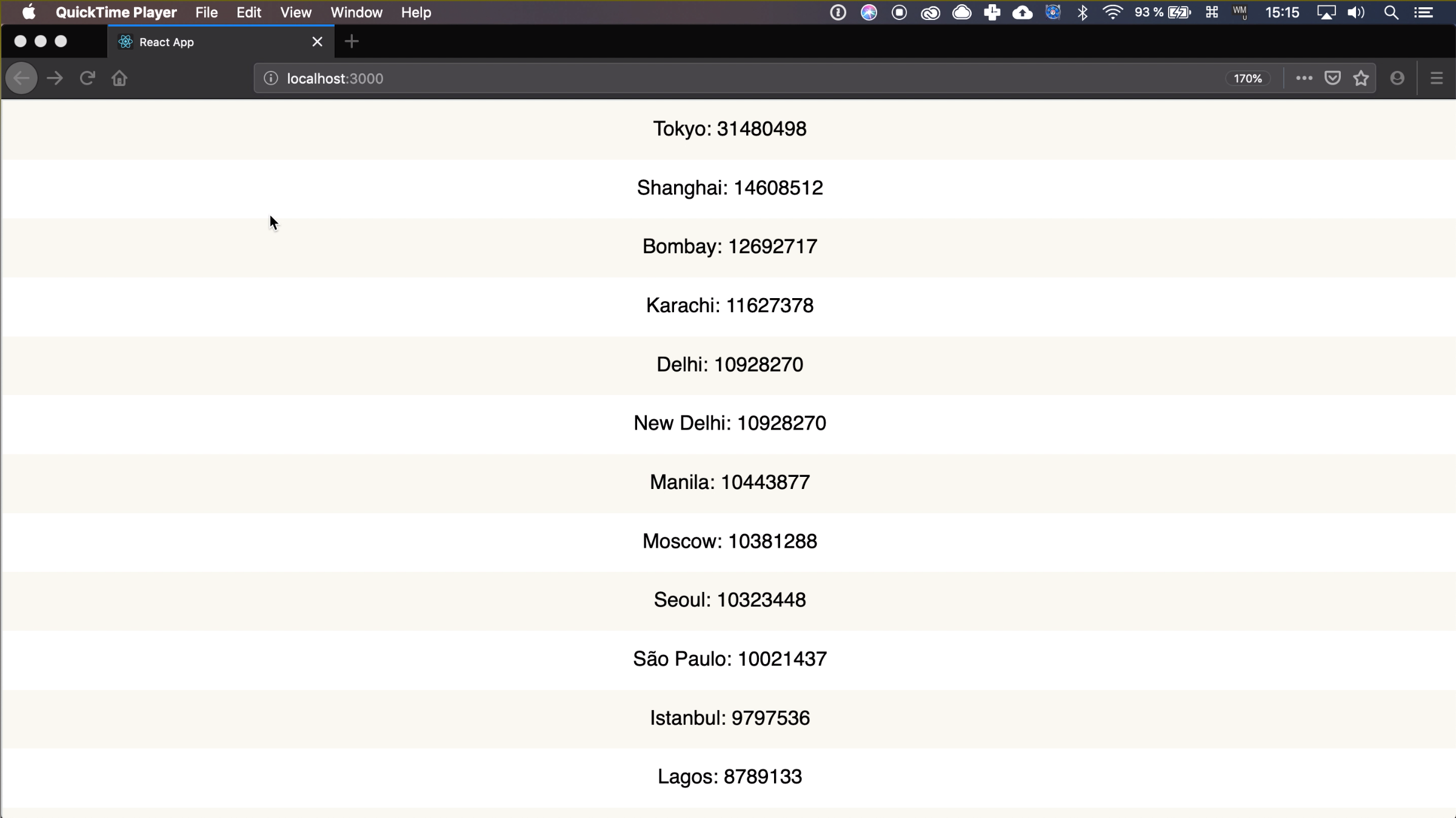

    Open the page in the browser - you should see the cities list.

Conclusion

Thank you for following through this tutorial, you can find the source code for it in this repo
